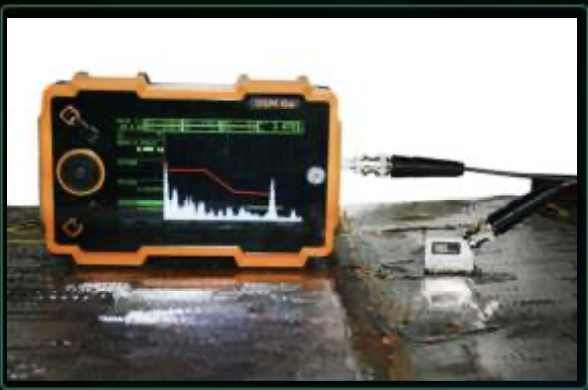

WAYGATE TECHNOLOGIES (GE) USM GO

USM Go is a high-end portable instrument, which has been developed to meet…

The USM Go Rope Access by Oceanscan is a rugged, portable ultrasonic flaw detector designed specifically for rope access inspections in challenging industrial environments. Tailored for technicians working at height or in confined spaces, it simplifies complex inspections with preset parameters and optimized features for ease of use. Ideal for weld inspections, through-coating thickness measurements, and corrosion detection, this lightweight device ensures reliability and efficiency in demanding conditions.

Key Features:

  • Rope Access Optimization: Preconfigured filters, PRF (15 Hz–2000 Hz), and rectification modes to eliminate manual adjustments during high-altitude work.
  • Dual Evaluation Tools:
    • DAC Module: Streamlined weld inspection.
    • Second Gate: Facilitates through-coating thickness measurements.
  • Rugged Design: IP67-rated for dust/water resistance, compact dimensions (175 x 111 x 50 mm), and lightweight (845g with battery).
  • Extended Battery: 6-hour runtime with on-board charging; optional off-board charging adapter.
  • High-Resolution Display: 5.0″ LCD (800×480 pixels) for clear A-scan visualization.
  • Data Logging: Supports 16GB SD cards for storing A-scans, thickness logs, and JPEG/BMP reports.

Specifications Highlights:

  • Pulser: Simulated spike (120V Low / 300V High), 50/1000 Ohms damping.
  • Receivers: 0.2–20 MHz bandwidth, 110dB dynamic range.
  • Operating Temperature: 0°C to 55°C.
  • Memory: Compatible with UltraMATE software for data analysis.
  • Connectivity: Micro USB, SD card slot, LEMO-00 probe connectors.
